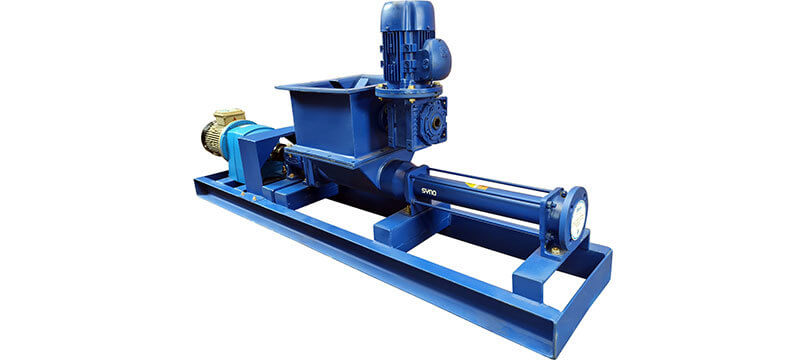

Bridge Breaker PC Pumps

Bridge Breaker PC Pumps BB-W Series Units are extension to W Series-Hopper Pumps, Bridge Breaker compels the material into the single screw which feeds the progressive cavity pump to result in a steady flow of product. BB-W Series(Bridge Breaker PC Pumps) convinces with a broad spectrum of applications. It is preferably used for conveying compacted, crumbly, lumpy, solid-loaden, shear-sensitive, sticky to dry, thixotropic, dilatant as well as abrasive or adhesive media.

30 Years

* MOC available in wide range as per Application & User's Requirement

Performance Data
+

Capacity Range : 2 m3/ hr to 100 m3/ hr

Temperature : Upto 150°C

Pressure : Upto 24 Bar

Viscosity : 1,00,000 Cp

Features and Benefits
+

Available with 5 bridge breaker designs to suit requirement

Optimised rpm for high viscous fluids and shear sensitive pumping

Enhanced hopper designed for efficient conveying of fluid direct to pumping elements

Shear sensitive pumping

Max Hard Particle Permissible: upto 22-26mm

Max Soft (Compressible ) Particle Permissible: 80-100mm

High Volumetric and mechnical efficiency

Smooth fluid discharge

No or extremely low vibration

Easy to maintain

Typical Applications

40% dry solids, minced meat, fig paste, peanut butter, fruits, onions and many more.
