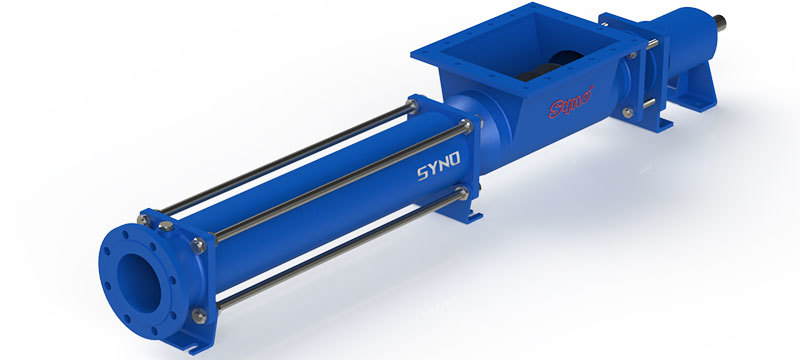

Wide Throat PC Pumps
Syno Wide Throat PC Pumps (W Series) are designed to handle highly viscous, solids-laden, and non-Newtonian fluids such as sludges, slurries, and thick pastes. They ensure smooth and efficient transfer of materials with very high viscosity.
These pumps feature a wide inlet with a screw conveyor to assist material flow into the pumping element. Their low-speed operation allows safe handling of shear-sensitive and abrasive fluids with reliable performance.
* MOC available in wide range as per Application & User's Requirement
Capacity Range : 0.5 m3/ hr to 200 m3/ hr
Temperature : Upto 150°C
Pressure : Upto 24 Bar
Viscosity : 1,00,000 Cp
Optimised rpm for high viscous fluids and shear sensitive pumping
Enhanced hopper designed for efficient conveying of fluid direct to pumping elements
Shear sensitive pumping
Max Hard Particle Permissible: upto 22-26mm
Max Soft (Compressible ) Particle Permissible: 80-100mm
High Volumetric and mechnical efficiency
Smooth fluid discharge
No or extremely low vibration
Easy to maintain
Typical Applications
